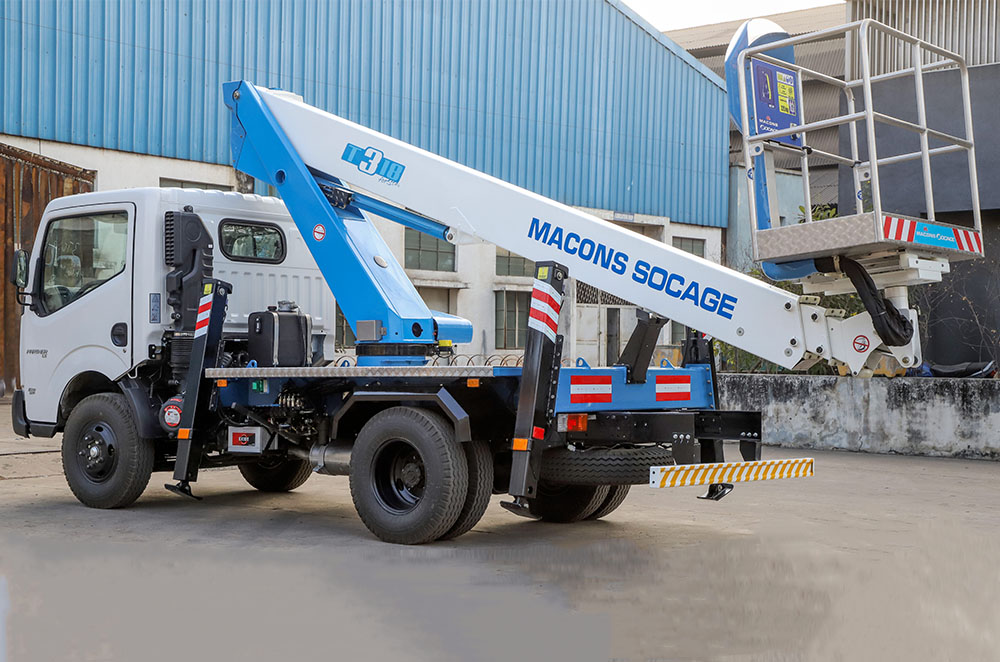

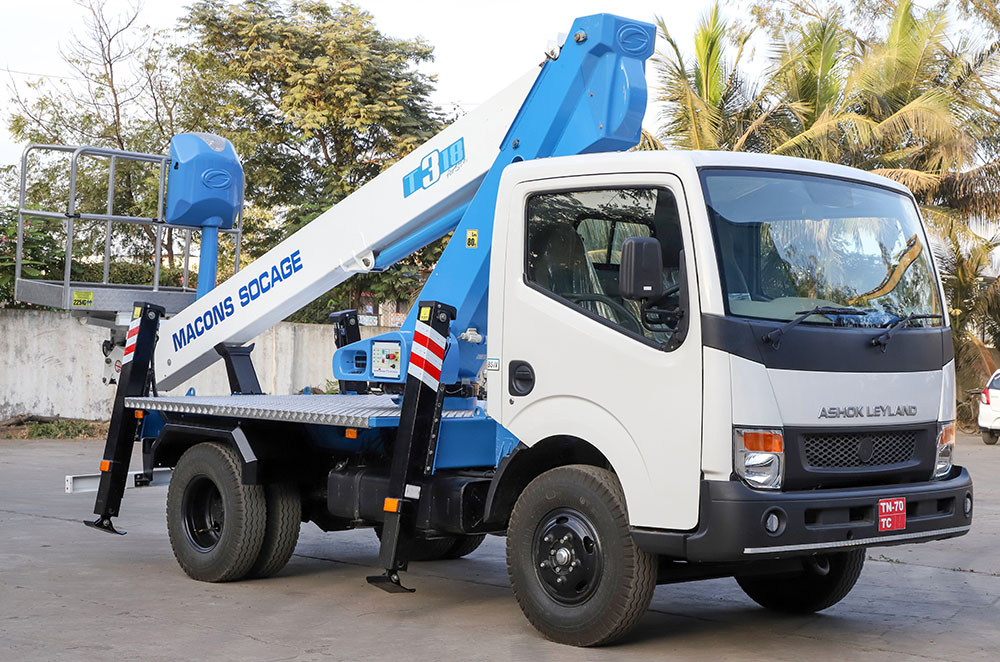

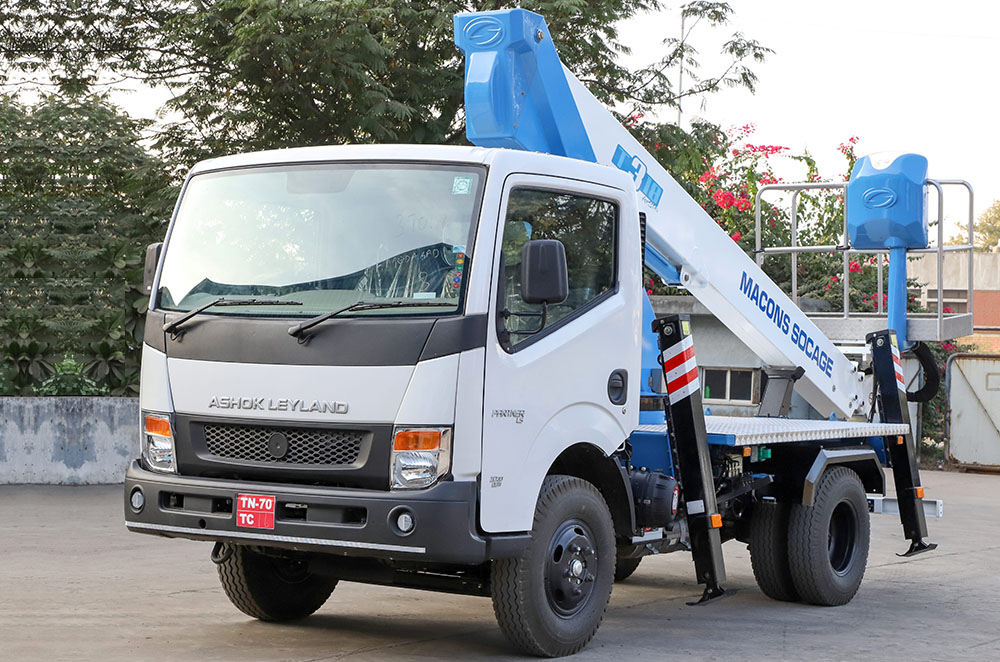

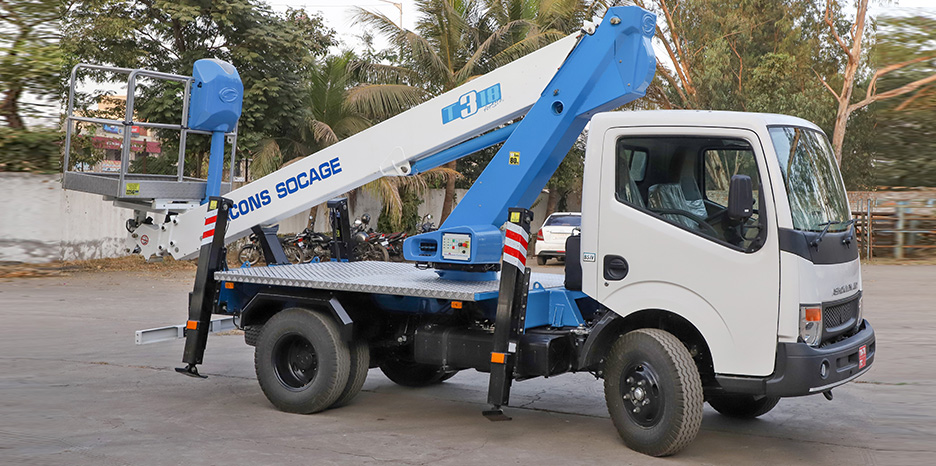

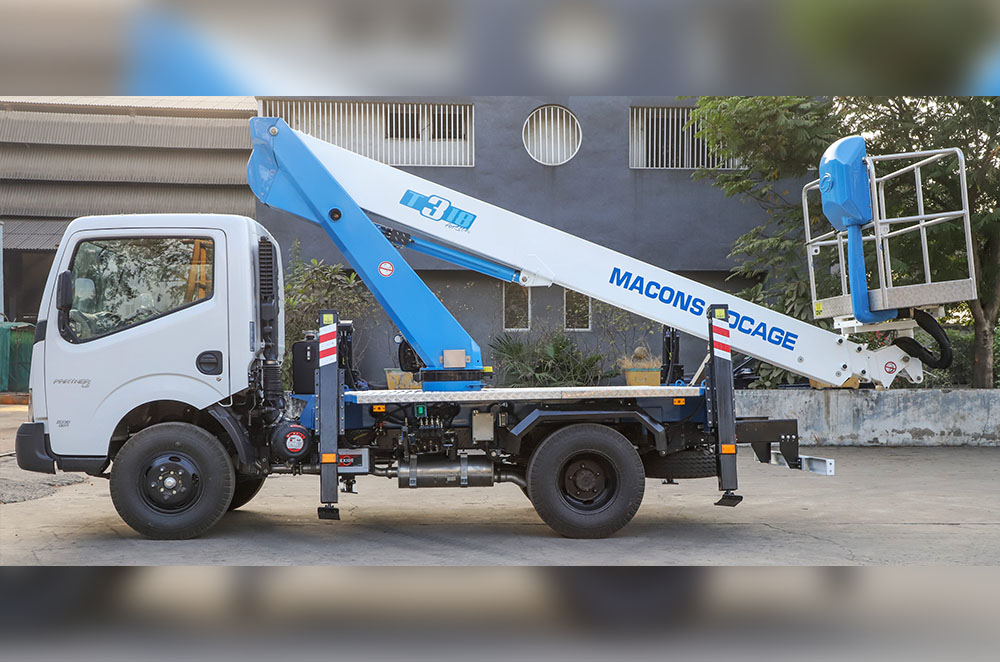

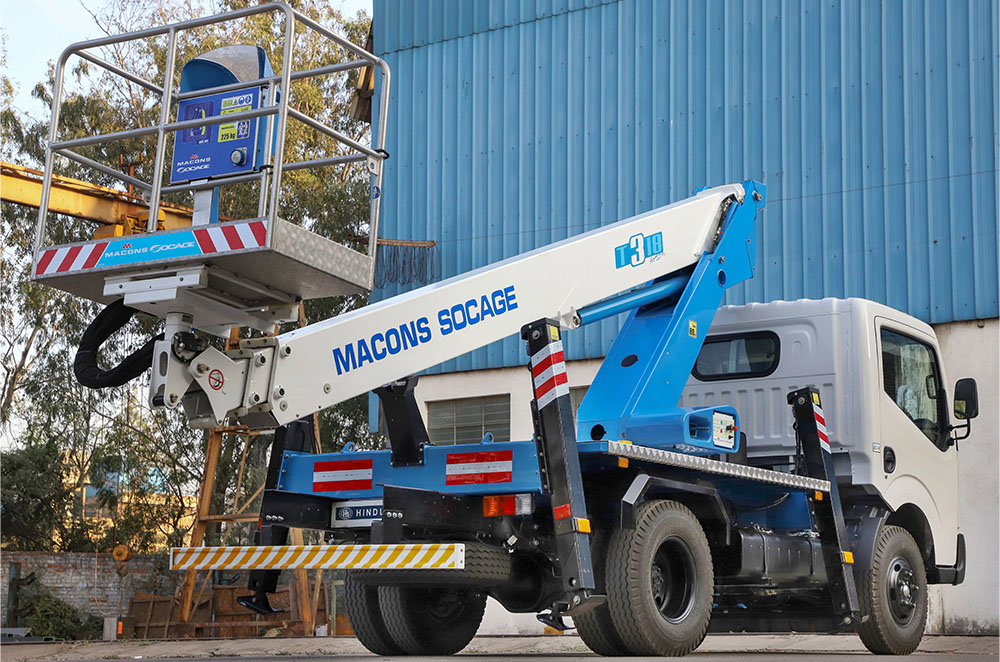

MACONSSOCAGE - T318 - AERIAL WORKING PLATFORMS

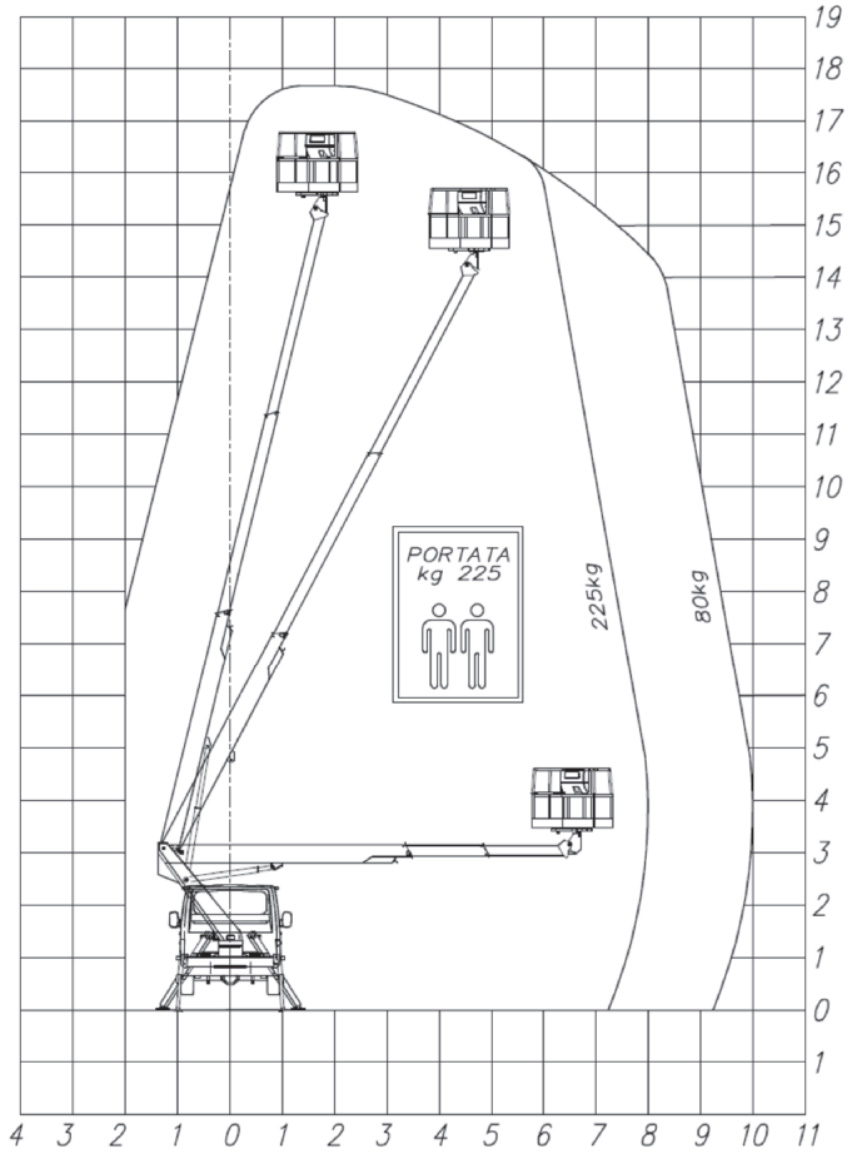

Maximum Working Height 17.7m
Maximum Platform Height 15.7m
Maximum Outreach 10m
Turntable Rotation / Slewing Range 360°
Basket Capacity 225kg
Aluminum Basket Dimension 140x70x110
Basket Rotation 90°+90°
Fixed Controls Hydraulic
GVW minimum 3.5 ton
Stabilizers H+H
  • Buzzer from the basket.
  • Hydraulic system with differential filtering system on both the delivery line and on return lines.
  • Electric socket 230 V in the basket.
  • Emergency hand-pump for platform and stabilizers.
  • Switch between platform and stabilizer operation.
  • Spirit Level.
  • Tool Box.
  • Electric hour meter.
  • Multi-axial device for visual control of the stabilization.
  • Anchor points for safety harnesses in the basket.
  • Four Stabilizer Cylinders with Load Holding Valve.
  • Engine start/stop control from basket in case of Emergency.
  • Load moment limiting device with double security and check system.
  • Maximum pressure valves on the hydraulic system.
  • Safety Harness.
  • Rotary lamp on Vehicle cabin.
  • Safety Reflectors on four Outriggers.
  • Interlocking limit switch between Main Boom and Four outriggers.
  • Boom-Truck cabin collision prevent device.
  • Polyethylene basket 140 x 70 x 110.
  • 1 Kv Basket insulation.
  • 4 No Spreader Plates.
  • Connection for air or water (up to 150 bars) at the turntable and in the cage.
  • White adjustable light on basket
