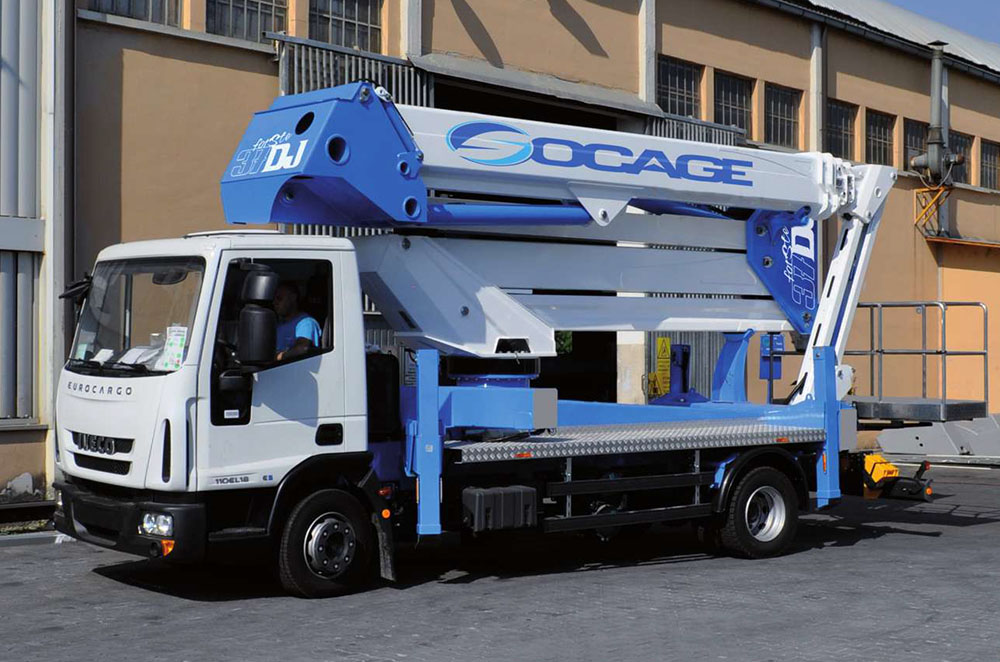

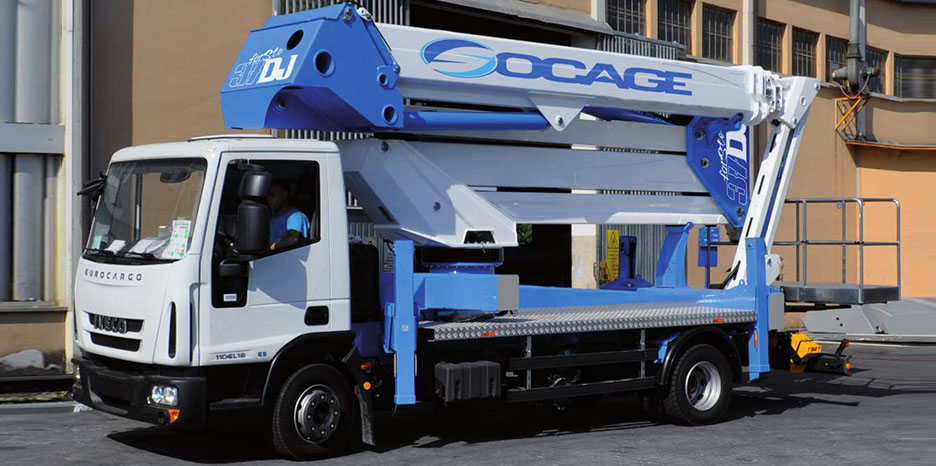

MACONSSOCAGE - 37DJ Speed - AERIAL WORKING PLATFORMS

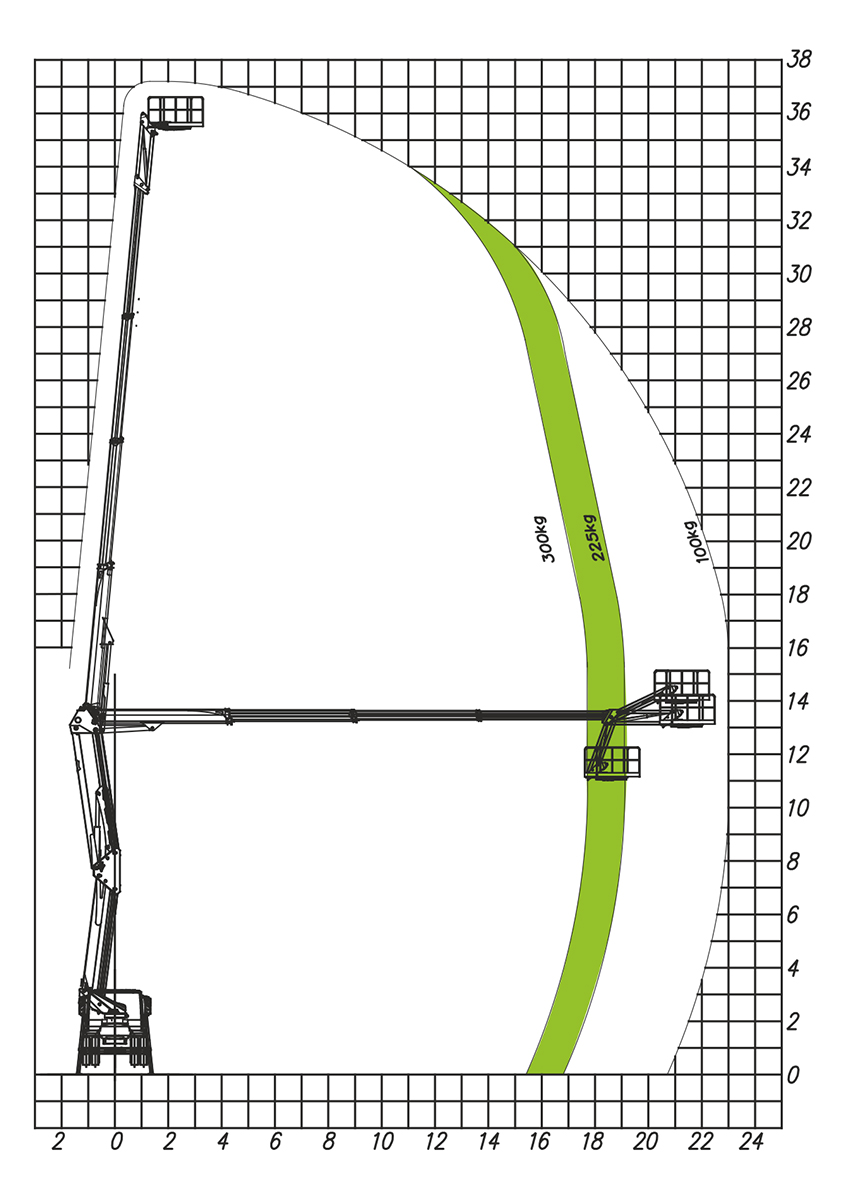

Maximum Working Height 37.30m
Maximum Platform Height 35.30m
Maximum Outreach 23m
Turntable Rotation / Slewing Range 700°
Basket Capacity 300kg
Aluminum Basket Dimension 200x80x110
Basket Rotation 90°+90°
Fixed Controls Electro Hydraulic
Stabilizers HE+HE
PTT 18t
  • Emergency and stop button
  • Cross check of open stabilizers
  • Multi axial device for visual control of frame stabilization
  • Intelligent cabin anti-collision sensor
  • Load limiter in the basket
  • Moment limiting device with double security
  • Emergency manual pump
  • Chassis flatness sensor
  • Flanged block valves
  • Differentiated filtering hydraulic system with high efficiency filters both on the delivery lines and on the return lines
  • Automatic leveling of the basket
  • PTO automatic cut-off
  • Warning horn from the basket
