MACONSSOCAGE - 28DA Speed - AERIAL WORKING PLATFORMS

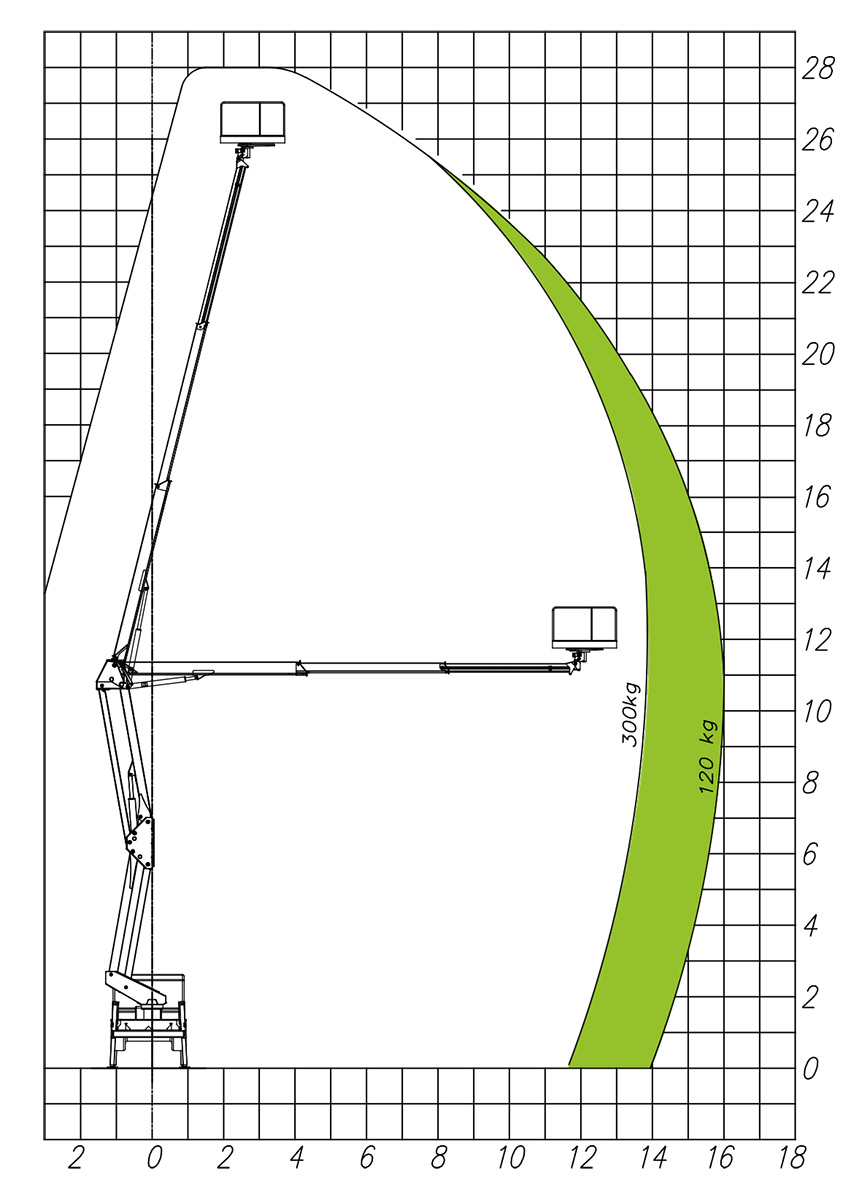

Maximum Working Height 28m
Maximum Platform Height 26m
Maximum Outreach 16m
Turntable Rotation / Slewing Range 700°
Basket Capacity 300kg
Aluminum Basket Dimension 180x70x110
Basket Rotation 90°+90°

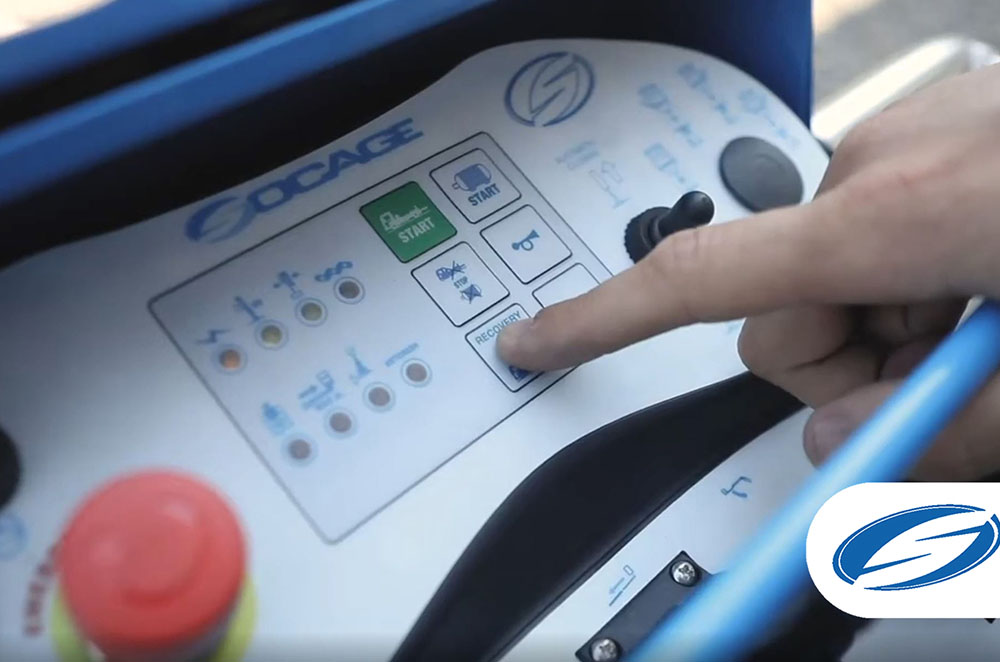

Fixed Controls Electric
Stabilizers H+H
PTT 10t
  • Emergency and stop button
  • Cross-check of open stabilizers
  • Multi-axial device for visual control of frame stabilization
  • Intelligent cabin anti-collision sensor
  • Load limiter in the basket
  • Moment limiting device with double security
  • Emergency manual pump
  • Chassis flatness sensor
  • Flanged block valves
  • Differentiated filtering hydraulic system with high efficiency filters both on the delivery lines and on the return lines
  • Automatic basket leveling
  • PTO automatic cut-off
  • Control from the basket for acoustic signal
